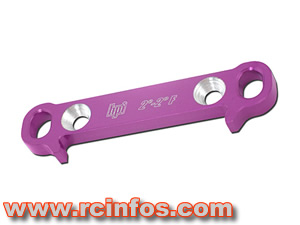

86527 - Hellfire
Front Suspension Mount Adjustable Kick Up
This optional mount allows further geometry adjustment beyond
the standard front mount. This suspension mount allows the front
kickup/ anti-dive to be adjusted to be adjusted from -2.0 to +2.0
at the inboard pins in 0.5 degree increments. The extended range
in the positive direction allows the truck to fine tuned to bumpier
tracks and more control of the steering feel of the truck.

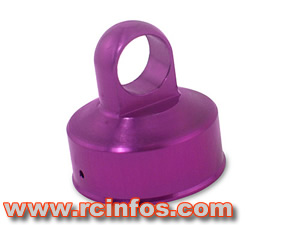

86542 - Hellfire Top Shock
Cap (Purple)
This part increases the durability compared to the standard resin
part and increases the precision of the shock top. In addition,
it adds a bit of purple bling for custom looks.

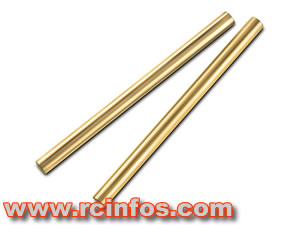

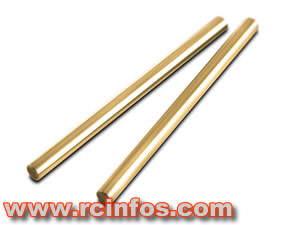

These titanium nitride coated shafts reduce friction and add durability.
86556 - Hellfire Billet
Front Brace (Black)
This machined 7075 front brace replaces
the stock plastic brace. It is stronger and reduces chassis flex
between the upper deck
and the lower chassis. For a pure performance, strictly function
type of look, it is black anodized and has a laser etched hpi
logo.

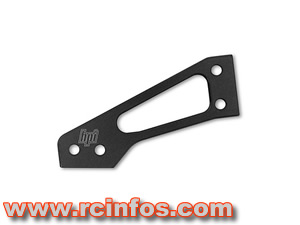

86557 - Hellfire Billet
Front Tower Brace (Black)
This
machined 7075 front tower brace replaces the stock plastic brace.
It is stronger and creates a more rigid connection between
the upper deck and the front shock tower. This rigid connection
allows the front suspension to work more efficiently and better
protects the front tower in crashes and hard landings. For
a pure performance, strictly function type of look, it is black
anodized
and has a laser etched hpi logo.

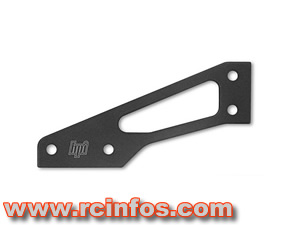

86558 - Hellfire Billet
Rear Tower Brace (Black)
This
machined 7075 front tower brace replaces the stock plastic brace.
It is stronger and creates a more rigid connection between
the upper deck and the rear shock tower. This rigid connection
allows the rear suspension to work more efficiently and better
protects the rear tower in crashes and hard landings. For a
pure performance, strictly function type of look, it is black anodized
and has a laser etched hpi logo.

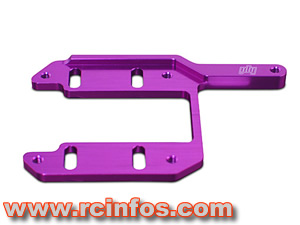

86583 - Hellfire Billet
Engine Plate (Purple)
This optional 7075 engine plate increases the bracing potential
over the stock engine plate by adding material along the engine
mount. It is more rigid than the stock stamped part and the extended
arm prevents the clutch bell from hitting the chassis and stalling
the engine after hard landings. In addition, it offers a more precise
alignment of the engine.

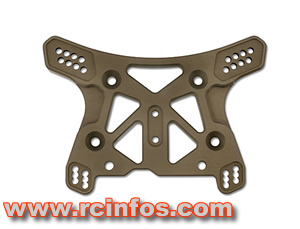

86587 - Billet Heavy Duty
Shock Tower
This
5mm thick, hard anodized, 7075 shock tower greatly increases
strength compared to the standard part and resists bending. The
camber mounting holes are repositioned for finer tuning adjustment
range of your roll centers. These towers are compatible with
both
plastic chassis braces and the optional 7075 chassis braces
and are designed to precisely seat in the chassis bulkheads.
87531 - Hellfire Billet
Steering Plate (Black)
This
steering plate has been lightened and shaped to allow more clearance
at extreme suspension angles. For a pure performance,
strictly function type of look, it is black anodized and has
a laser etched hpi logo.
